Product Detail

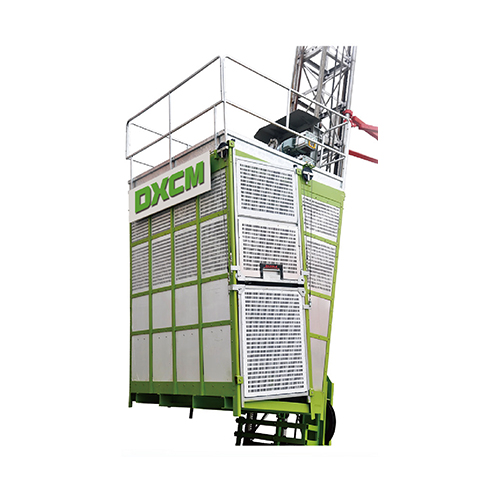

Curved Hoist

1. Guide rail frame with special treatment and the building surface parallel

2. Use a floating leveling mechanism to ensure that the construction elevator is moving along the curve when the hanging cage is kept horizontal

3. Applicable to cooling tower and curved buildings and other construction projects

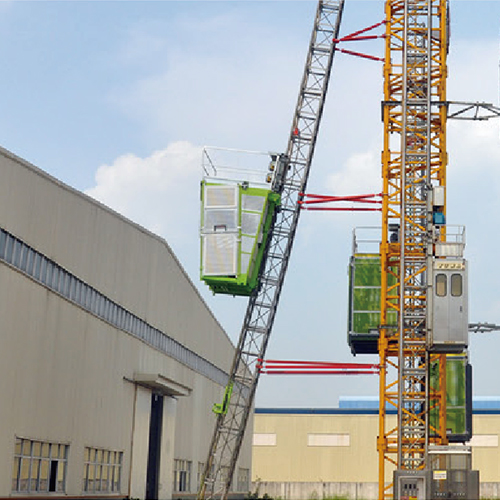

Inclined Hoist

1. The guide rail shall be installed in an inclined position with a maximum inclination of 15°.

2. With a floating leveling mechanism to ensure that the construction of the elevator in the movement along the oblique line; when the hanging cage is kept horizontal.

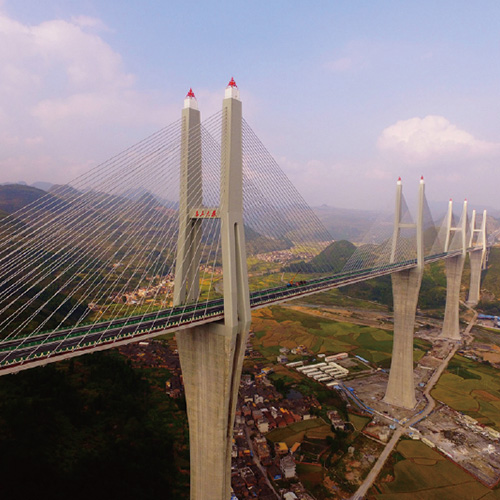

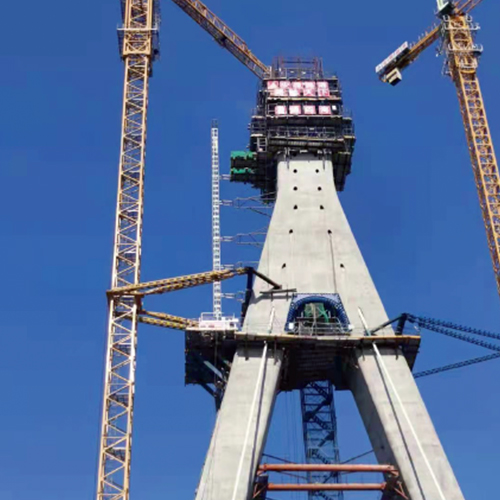

3. Suitable for chemical plants, chimneys, water towers, bridges and other buildings engineering.

Curved Hoist Inclined Hoist

Table of technical parameters

	Model	Capacity (kg)	Lifting Speed (m/min)	Motor Power (kW)	Cage Size (m)
Curved Hoist	SCQ80	800	34	2×11	2.4×1.3×2.5
Inclined Hoist	SCQ120	2000	34	2×11	2.6×1.5×2.5
